Titan HVLS Industrial Ceiling Fan Parts

Explore the complete anatomy of the Titan HVLS Industrial Ceiling Fan through the interactive exploded view below. Each numbered component corresponds to a specific part of the fan, from the motor and hub assembly to the airfoils and safety features. If you need a Variable Frequency Drive (VFD) for your HVLS fan, click here to learn more about VFDs.

Click on any number to reveal detailed part names below, and dive deeper into submenus for specifications, compatibility, and replacement options.

Parts Program 1

4

2

1

Parts Program 2

3

Parts Program 5

5

5

Diagram Parts | Select a part to jump to the respective products below.

1 | Motor Hub Assembly (2x) 2 | Blade & Blade Holder Assembly (5x) 3 | Service Pack - Motor to Downrod Nuts 4 | Adjustable Downrod (3x) 5 | Service Pack - Blade Holder Screws & Blade Holder Safety Bolt

Products

2 products

Titan 14' - 18' Motor Assembly

Part Number: 72377

Description: Fully-assembled replacement motor designed for Hunter Industrial Titan HVLS fans with 14', 16', or 18' blades. Blades sold separately.

QTY:

$2,748.37

QTY:

Titan 20' - 24' Motor Assembly

Part Number: 72376

Description: Fully-assembled replacement motor designed for Hunter Industrial Titan HVLS fans with 20' or 24' blades. Blades sold separately.

QTY:

$2,748.37

QTY:

5 products

14'

Titan 14' Blade & Blade Holder Assembly

Part Number: Y072701000

Description: Fully-assembled, single fan blade replacement for a Hunter 14' diameter HVLS fan. Ready for installation on a Titan HVLS motor assembly.

QTY:

$173.03

QTY:

16'

Titan 16' Blade & Blade Holder Assembly

Part Number: Y072601000

Description: Fully-assembled, single fan blade replacement for a Hunter 16' diameter HVLS fan. Ready for installation on a Titan HVLS motor assembly.

QTY:

$187.69

QTY:

18'

Titan 18' Blade & Blade Holder Assembly

Part Number: Y072501000

Description: Fully-assembled, single fan blade replacement for a Hunter 18' diameter HVLS fan. Ready for installation on a Titan HVLS motor assembly.

QTY:

$198.08

QTY:

20'

Titan 20' Blade & Blade Holder Assembly

Part Number: Y072401000

Description: Fully-assembled, single fan blade replacement for a Hunter 20' diameter HVLS fan. Ready for installation on a Titan HVLS motor assembly.

QTY:

$207.64

QTY:

24'

Titan 24' Blade & Blade Holder Assembly

Part Number: Y072301000

Description: Fully-assembled, single fan blade replacement for a Hunter 24' diameter HVLS fan. Ready for installation on a Titan HVLS motor assembly.

QTY:

$236.85

QTY:

1 product

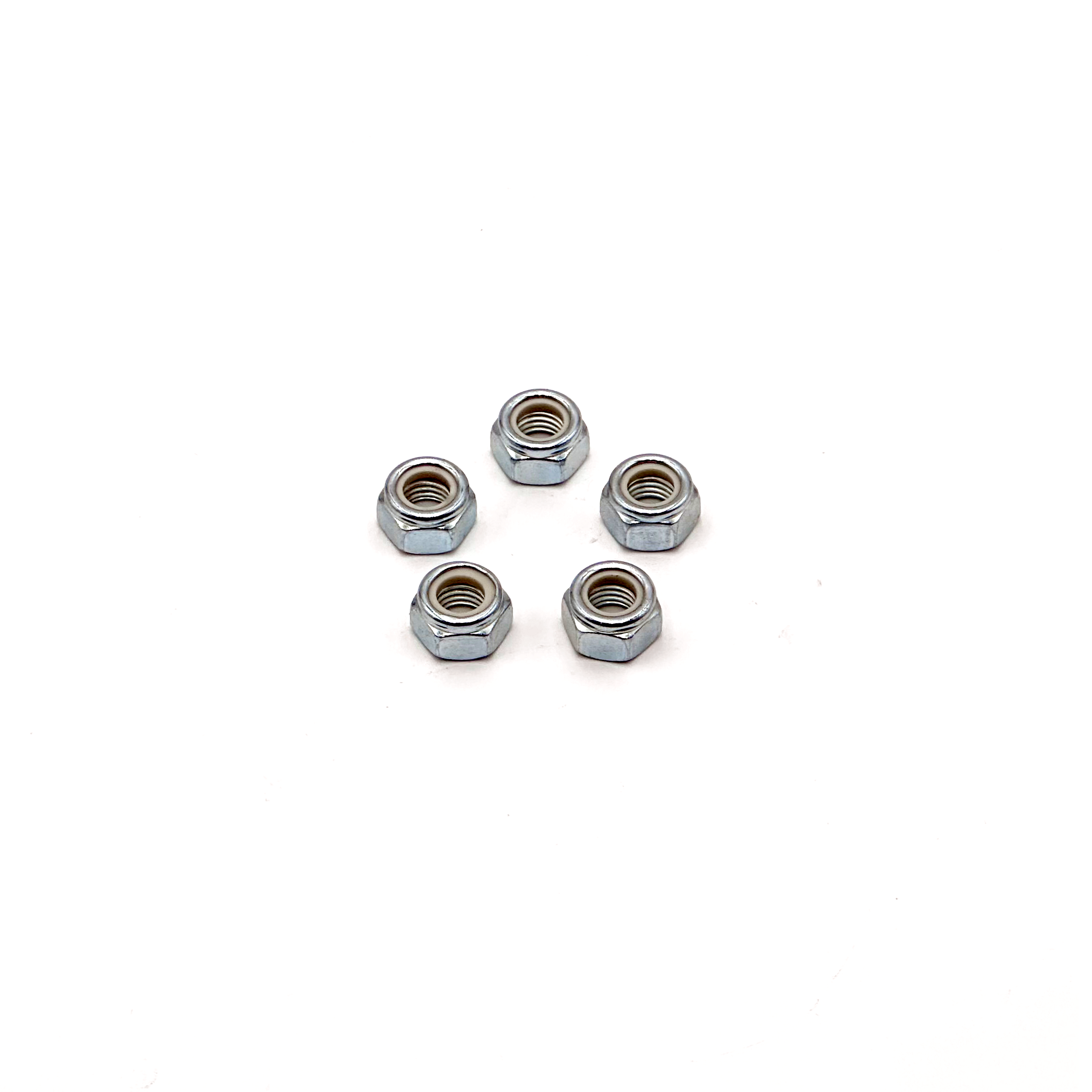

Titan Motor to Downrod Nuts

Part Number: 74233

Description: Titan's Motor to Downrod Nuts service pack includes five m12 x 1.75 nylock nuts for securely attaching the motor to the downrod.

QTY:

$30.50

QTY:

3 products

4'

Short - Adjustable Downrod (2.5' - 4')

Part Number: 72428

Description: Our patented adjustable downrod allows you to modify the installation height of your HVLS ceiling fan, letting you lengthen or shorten the ceiling-to-fan distance between 2.5' and 4'. It is prewired and includes U-Bolts, a VFD cable, and a safety retention cable.

QTY:

$959.45

QTY:

6'

Medium - Adjustable Downrod (4.5' - 6')

Part Number: 72429

Description: Our patented adjustable downrod allows you to modify the installation height of your HVLS ceiling fan, letting you lengthen or shorten the ceiling-to-fan distance between 4.5' and 6'. It is prewired and includes U-Bolts, a VFD cable, and a safety retention cable.

QTY:

$1,077.97

QTY:

10'

Long - Adjustable Downrod (6.5' - 10')

Part Number: 72430

Description: Our patented adjustable downrod allows you to modify the installation height of your HVLS ceiling fan, letting you lengthen or shorten the ceiling-to-fan distance between 6.5' and 10'. It is prewired and includes U-Bolts, a VFD cable, and a safety retention cable.

QTY:

$1,233.47

QTY:

1 product

Titan Blade Holder Screws & Blade Holder Safety Bolt

Part Number: 74232

Description: Titan's Blade Holder Nuts service pack includes five m8 x 1.25 10mm screws with thread locker patches and ten grub screws with saddles, designed to securely attach the blades to the motor.

QTY:

$206.75

QTY:

Need Help? Talk to an expert today.

We've Got You Covered: Review our comprehensive warranty on service parts. Learn More

Important:
Installation, adjustment, repair, or maintenance must be performed by qualified personnel. Follow all safety practices and instructions during the installation, operation, and servicing of the fan. Failure to apply these safety practices could result in death or serious injury. If you do not understand the instructions, please call our Technical Department at 1-844-591-FANS (3267) for guidance. Also, you may view our Titan Installation video on YouTube:

Always check Federal, State, and Local Codes before installing fan. Code compliance is the responsibility of the installer. Check all relevant codes to make sure that all product certifications, product listings, and building regulations are met.
