XP HVLS Industrial Ceiling Fan Parts

Explore the complete anatomy of the XP HVLS Industrial Ceiling Fan through the interactive exploded view below. Each numbered component corresponds to a specific part of the fan, from the motor and hub assembly to the airfoils and safety features. If you need a Variable Frequency Drive (VFD) for your HVLS fan, click here to learn more about VFDs.

Click on any number to reveal detailed part names below, and dive deeper into submenus for specifications, compatibility, and replacement options.

Parts Program 5

1

2

4

3

5

Parts Program 5

1

3

5

Parts Program 5

2

4

Diagram Parts | Select a part to jump to the respective products below.

1 | Motor Hub Assembly (2x) 2 | Blade & Blade Holder Assembly (5x) 3 | Service Pack - Motor to Downrod Nuts 4 | Fixed Downrod (3x) 5 | Service Pack - Blade Holder Nuts

Products

2 products

XP 7' - 10' Motor Assembly

Part Number: 72397

Description: Fully-assembled replacement motor designed for Hunter Industrial XP HVLS fans with 7', 8', or 10' blades. Blades sold separately.

QTY:

$1,695.60

QTY:

XP 12' - 14' Motor Assembly

Part Number: 72396

Description: Fully-assembled replacement motor designed for Hunter Industrial XP HVLS fans with 12' or 14' blades. Blades sold separately

QTY:

$1,695.60

QTY:

5 products

7'

XP 7' Blade & Blade Holder Assembly

Part Number: Y075701000

Description: Fully-assembled, single fan blade replacement for a Hunter 7' diameter XP HVLS fan. Ready for installation on a XP HVLS motor assembly.

QTY:

$116.15

QTY:

8'

XP 8' Blade & Blade Holder Assembly

Part Number: Y043801000

Description: Fully-assembled, single fan blade replacement for a Hunter 8' diameter XP HVLS fan. Ready for installation on a XP HVLS motor assembly.

QTY:

$119.71

QTY:

10'

XP 10' Blade & Blade Holder Assembly

Part Number: Y043701000

Description: Fully-assembled, single fan blade replacement for a Hunter 10' diameter XP HVLS fan. Ready for installation on a XP HVLS motor assembly.

QTY:

$130.55

QTY:

12'

XP 12' Blade & Blade Holder Assembly

Part Number: Y043601000

Description: Fully-assembled, single fan blade replacement for a Hunter 12' diameter XP HVLS fan. Ready for installation on a XP HVLS motor assembly.

QTY:

$142.17

QTY:

14'

XP 14' Blade & Blade Holder Assembly

Part Number: Y043501000

Description: Fully-assembled, single fan blade replacement for a Hunter 14' diameter XP HVLS fan. Ready for installation on a XP HVLS motor assembly

QTY:

$146.19

QTY:

1 product

XP Motor to Downrod Nuts

Part Number: 74233

Description: XP's Motor to Downrod Nuts service pack includes five m12 x 1.75 nylock nuts for securely attaching the motor to the downrod.

QTY:

$30.50

QTY:

3 products

2'

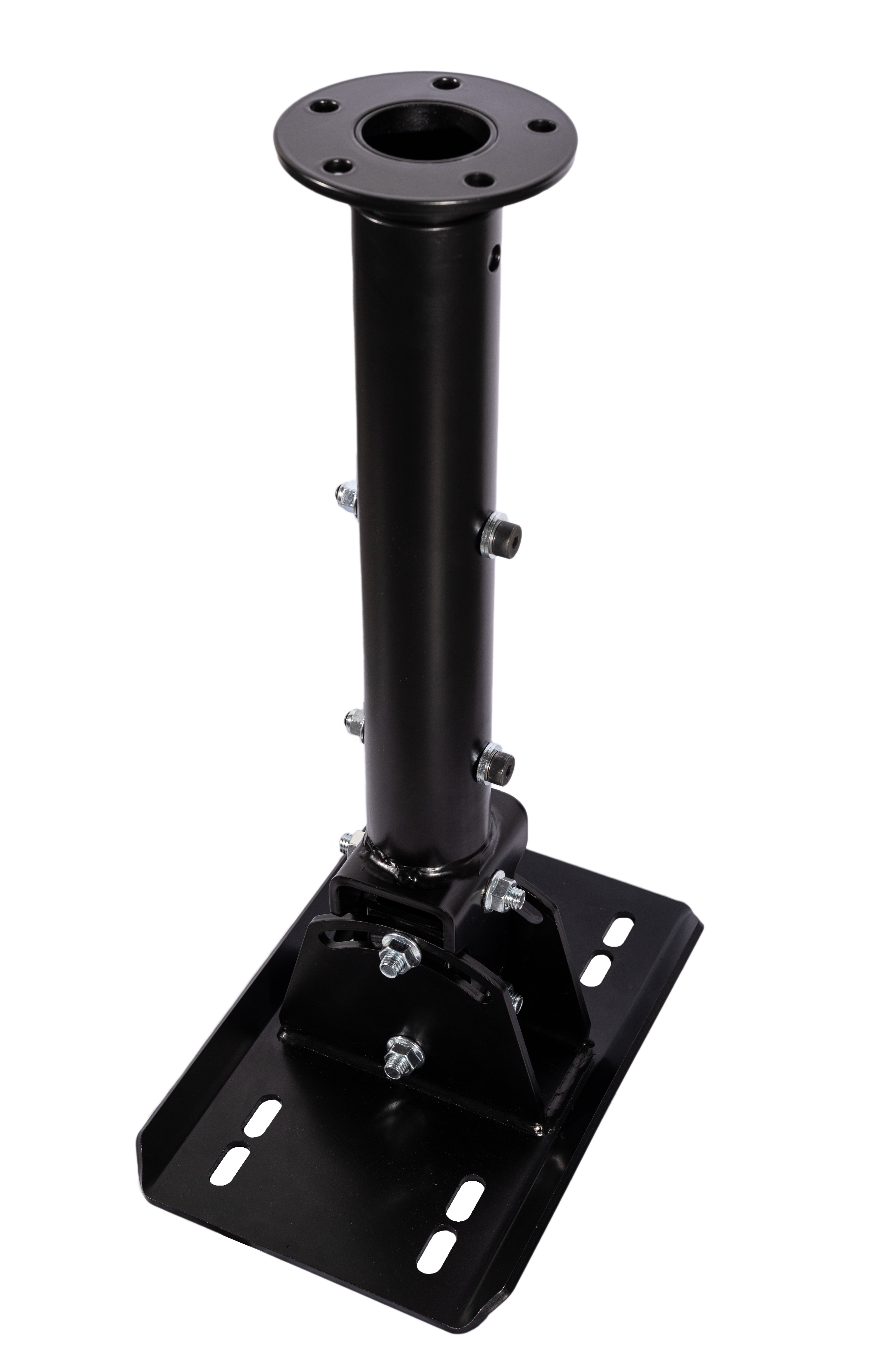

2' Fixed Downrod Complete Assembly

Part Number: 74084

Description: A complete, 2' pre-wired downrod for the XP HVLS fan. Sets the ceiling/structure-to-fan distance at 2' and includes the VFD cable and safety retention cables.

QTY:

$607.92

QTY:

3'

3' Fixed Downrod Complete Assembly

Part Number: 74069

Description: A complete, 3' pre-wired downrod for the XP HVLS fan. Sets the ceiling/structure-to-fan distance at 3' and includes the VFD cable and safety retention cables.

QTY:

$640.50

QTY:

4'

4' Fixed Downrod Complete Assembly

Part Number: 74088

Description: A complete, 4' pre-wired downrod for the XP HVLS fan. Sets the ceiling/structure-to-fan distance at 4' and includes the VFD cable and safety retention cables.

QTY:

$694.60

QTY:

1 product

XP Blade Holder Nuts

Part Number: 74234

Description: XP's Blade Holder Nuts service pack includes five m12 x 1.75 nylock nuts, designed to securely attach the blades to the motor.

QTY:

$31.55

QTY:
